Scientist from Aerospace Engineering have been involved in the design development of our FRP fans. Prof. A. K. Rao, who has been a technical consultant to Lockheed of U.S.A alongwith his group from the Indian Institute of Science, Bangalore, is behind our successful FRP fans. CAD methods' are used for our fan designs.
Due to high aerodynamic efficiency, our fans consume less power when compared to the conventional fans. Some of our esteemed clients have evaluated the performance of our fans. They are "As jointly studied by our technical services and your representative for the same flow of air approximately 30% saving in power consumption has been observed in your fans." National Fertilizer Limited,Bhatinda" "The fans fitted with your FRP blades are consuming about 30% less power than the other fans and at the same time we are getting more air flow than induced by other fans." - The Fertilizer Corporation of India Ltd., Ramagundam.

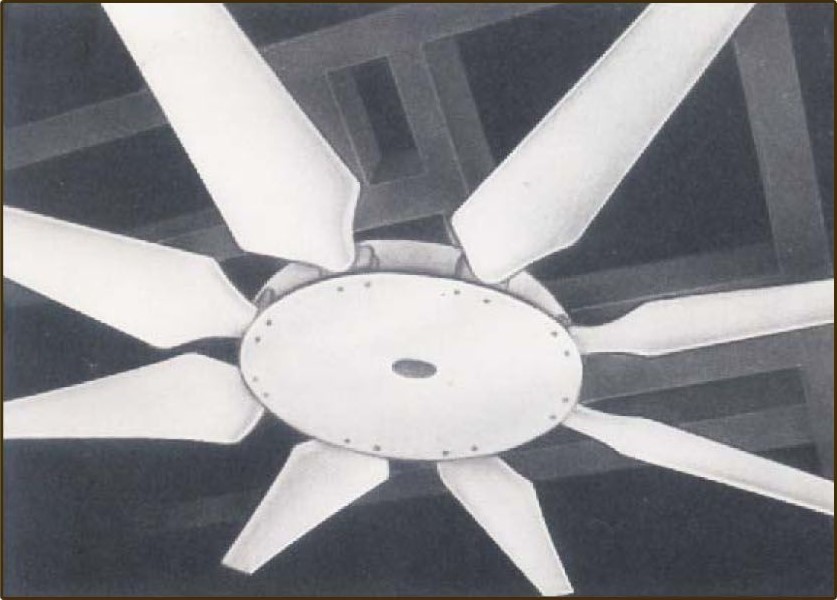

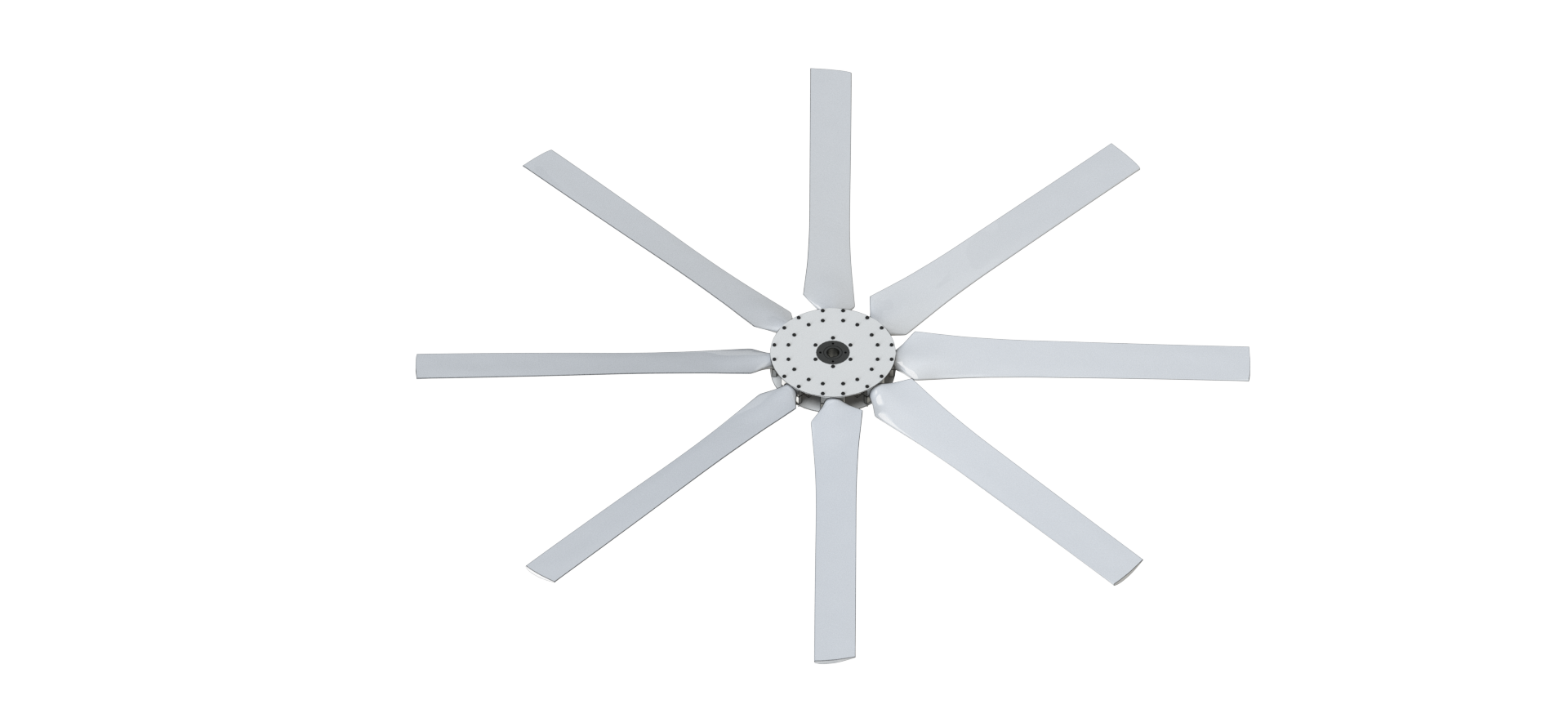

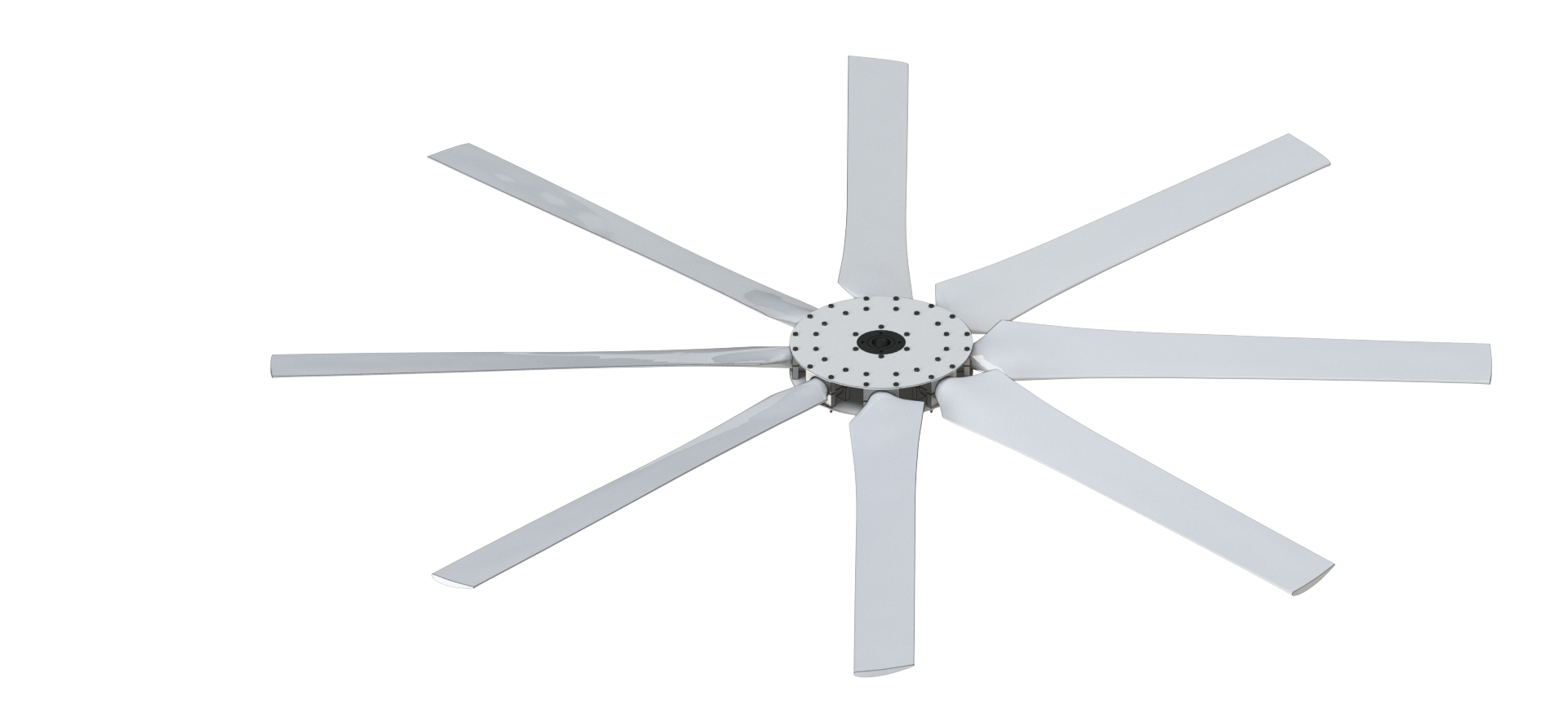

Our variable pitch fans are specially designed to meet the severe environmental conditions and continuous exposure to heat and water in cooling towers. Our latest design of 24 (7.315 meters) Dia. FRP (Fibreglass Reinforced Plastics) fans are in continuous service since August 1981. Epoxy resins have been preferred for higher strength, higher heat resistance and greater chemical resistance with lower water absorption and hence our fibreglass blades are reinforced with epoxy.
With FRP materials, the problems of corrosion are minimised. Expensive protective coatings or surface treatments are not required for our blades due to their superior corrosion resistance. This ensures years of trouble free service in severely contaminated areas. For corrosion protection of hub, we galvanise the steel. The hardware is all of S.S.304 and hence is not prone to corrosion. The hub spool and blade clamps are of cast iron and are unaffected by corrosive environment.

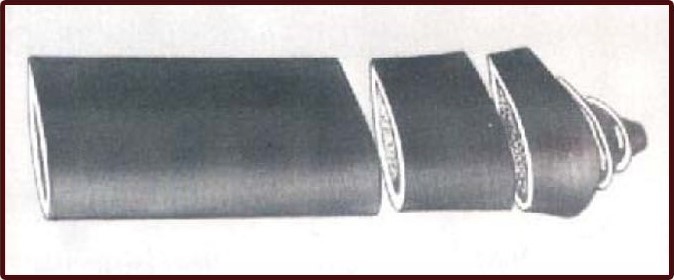

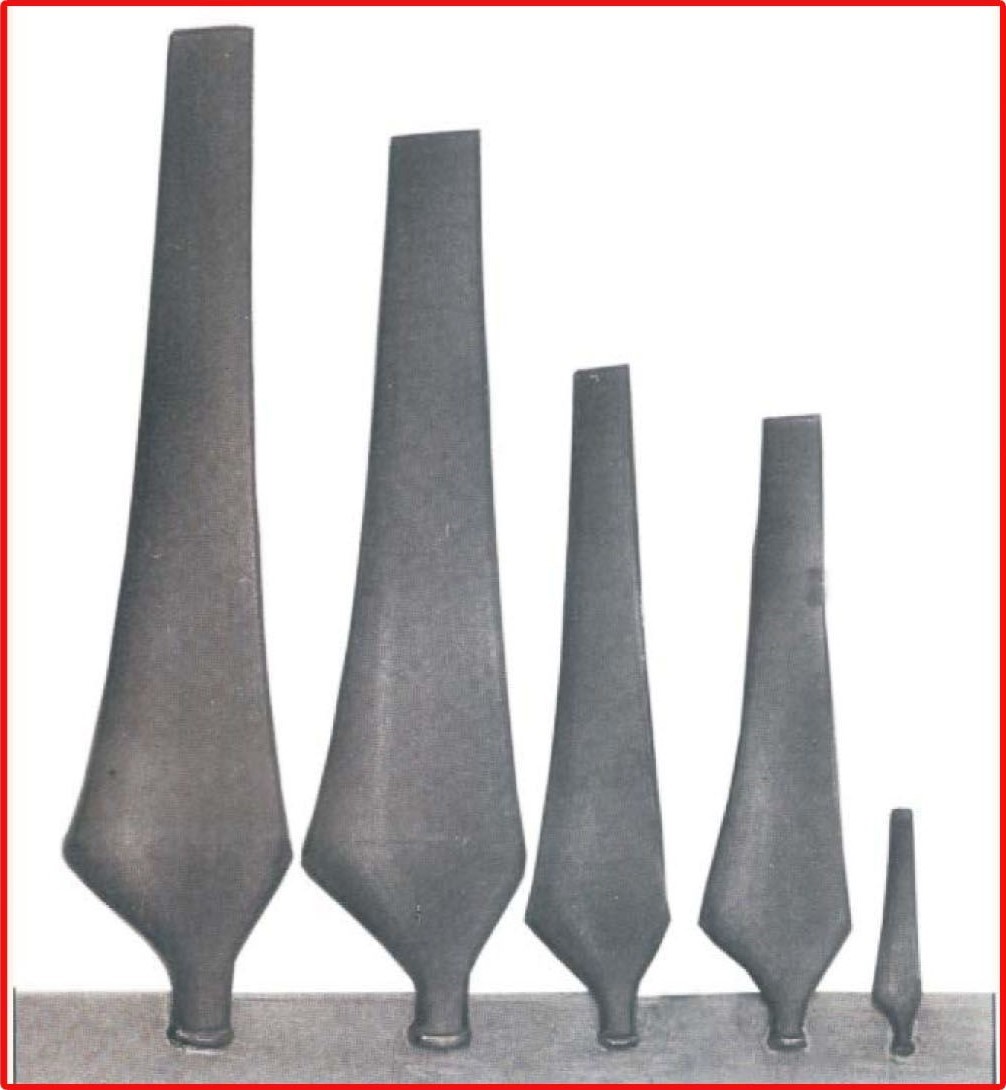

Our fan blades are made out of FRP material with a unique moulding technique. These blades are hollow in construction and hence light in weight. At the same time, they are exceptionally tough and fatigue resistant. FRP ha as very high strength to weight ratio when compared to conventional material like aluminium and steel.
The hub alignments are either statically or dynamically balanced depending on the requirement of the customer. The fan blades and the hub are independently balanced to ensure vibration-free continuous operation.

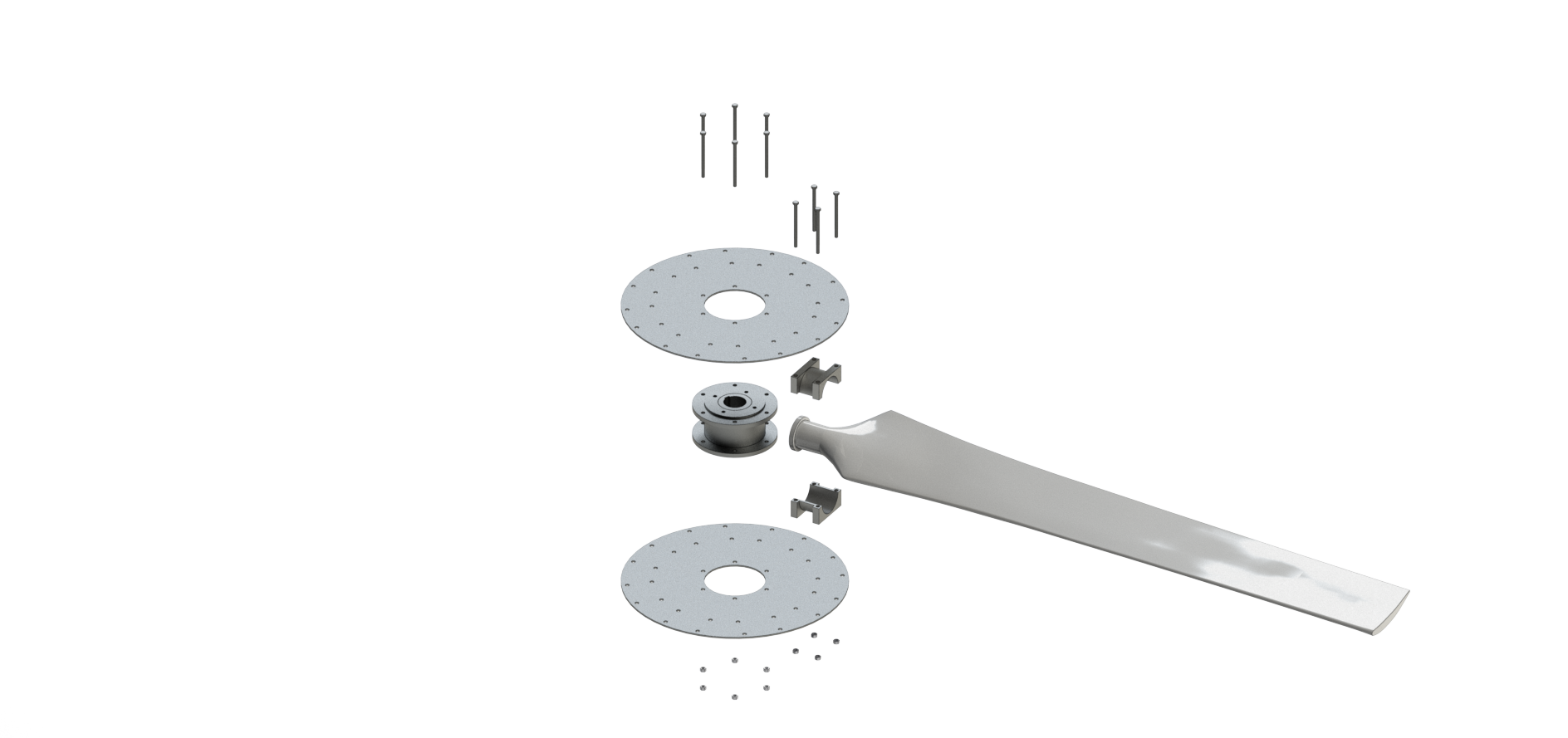

The material specifications of fan components are:
Blades: Fibreglass Reinforced Plastic (FRP)
Hub Spool: Cl to IS: 210•.1970 FG25
Taper Bush: SS to AISI 304
Hub Body: Galvanised mild steel
Clamps: Cl to IS Gr. FG25
Hardware: SS to AISI 304
The erosion of the leading edge of the fan blades is most common even in our domestic ceiling fans. In cooling towers, since the fans handle humid air with a lot of water droplets, erosion is much more severe and causes pitting of the leading edge of the fan blades resulting in loss of efficiency. Recondo fans have an extra leading edge on each blade to deflect the water droplets in the air stream handled by the fan.
There are numerous advantages in installing 'RECONDO' fans. A few of them are .
# Energy saving upto 30% and hence a very short 'pay-back' period due to saving in operating costs.
# Simple construction of hub assembly means easy installation and maintenance.
# Increase in the life of gears and bearings due to light weigh of our FRP blades.

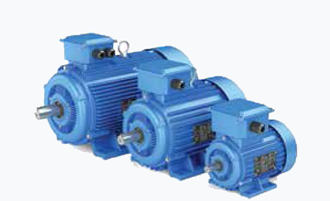

# Smaller capacity motors can be used due to lower power consumption.
We manufacture 6 ft. through 34 ft. dia. fans. We can also undertake development of larger diameter fans for any special applications.
We are an international member of the Air Movement and Control Association (AMCA), U.S.A.
We have very efficient 'after sales service' backed up by highly experienced engineers who attend to problems to the consumers satisfaction.
We offer technical assistance in evaluating your present cooling tower and /or fan installations and work out cost-benefit ratios for your study. We have fully trained application engineers to visit your installation with our own sophisticated instruments to help you run your cooling towers and fans most economically.
We manufacture 6 ft. through 34 ft. dia. fans. We can also undertake development of larger diameter fans for any special applications.
Our variable pitch fans are specially designed to meet the severe environmental conditions and continuous exposure to heat and water in cooling towers. Our latest design of 24 (7.315 meters) Dia. FRP (Fibreglass Reinforced Plastics) fans are in continuous service since August 1981. Epoxy resins have been preferred for higher strength, higher heat resistance and greater chemical resistance with lower water absorption and hence our fibreglass blades are reinforced with epoxy.
| Series No | Fan Diameter (mm) | Length (m) | Breadth (mm) | TR |
|---|---|---|---|---|
| PT-001 | 500 | 0.8 | 0.8 | 20 |
| PT-002 | 755 | 1.2 | 1.2 | 50 |
| PT-003 | 1220 | 1.5 | 1.5 | 75 |
| PT-004 | 1220 | 1.5 | 2.1 | 100 |
| PT-005 | 1530 | 2.1 | 2.1 | 150 |
| PT-006 | 1530 | 2.1 | 2.4 | 200 |
| PT-007 | 1830 | 2.7 | 2.7 | 250 |
| PT-008 | 2430 | 3.0 | 3.5 | 300 |
We have helped and guided organisations to achieve outstanding results
Nashik, Paras, Karadi
Mumbai
Chennai
Bhatinda, Panipat, Nayanangal
Faridabad
Navi Mumbai
Navi Mumbai
Durgapur, Gorakhpur
(Panki TPS) Kanpur
Baroda
Chennai
Mumbai, Kanpur, Gomia (Jarkhand)
Baroda
Mangalore
Ramagundama, Shirdi, Gorakhpur, Talcher, Kanpur, Sindri
Mumbai
Bangalore
Kalol, Phulpur
Kalyan (Maharashtra), Baroda
Chennai
Thane (Maharashtra)
Karnataka, Ugar Khurd
Ramagundama
Kolkatta
Neyveli
Durgapur steel plant
Goa
Thane (Maharashtra)
Bangalore
Kolkata
Goa
Thane (Maharashtra)
Baroda
Gujrat
Gujrat
Kochi (Kerala)
Thane (Maharashtra)
Gujrat
Tuticorin
Kherinagar (Rajastan)
Sahad
U.P
Kota
Gujrat, Digboi (Assam), Baroda, Mathura
New Delhi
Thane (Maharashtra)
Madras
Talcher
Gomia
Chennai
Thane (Maharashtra)
Nagda
Mumbai
Kota
Bareily
Thane (Maharashtra)

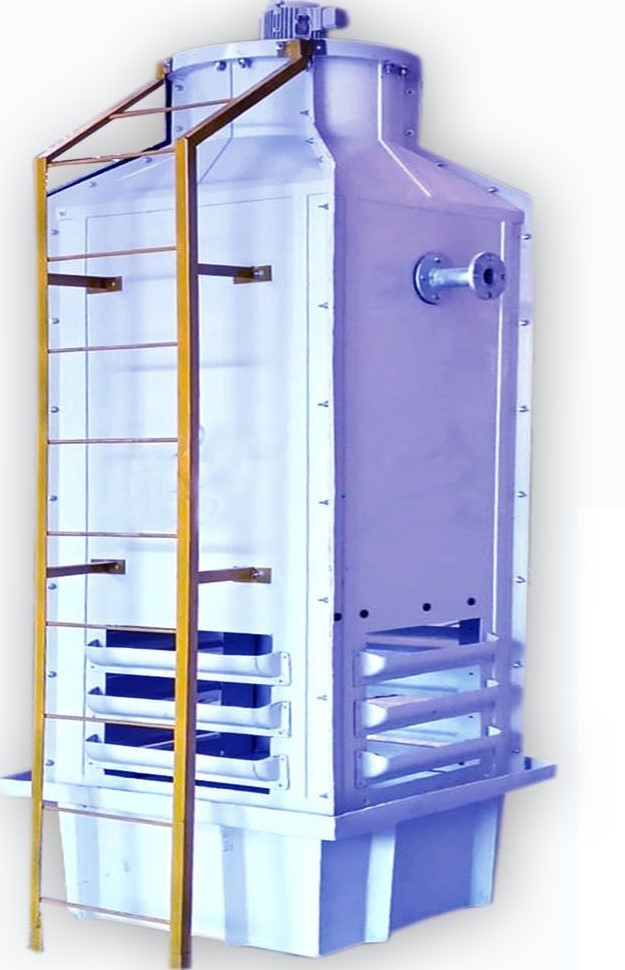

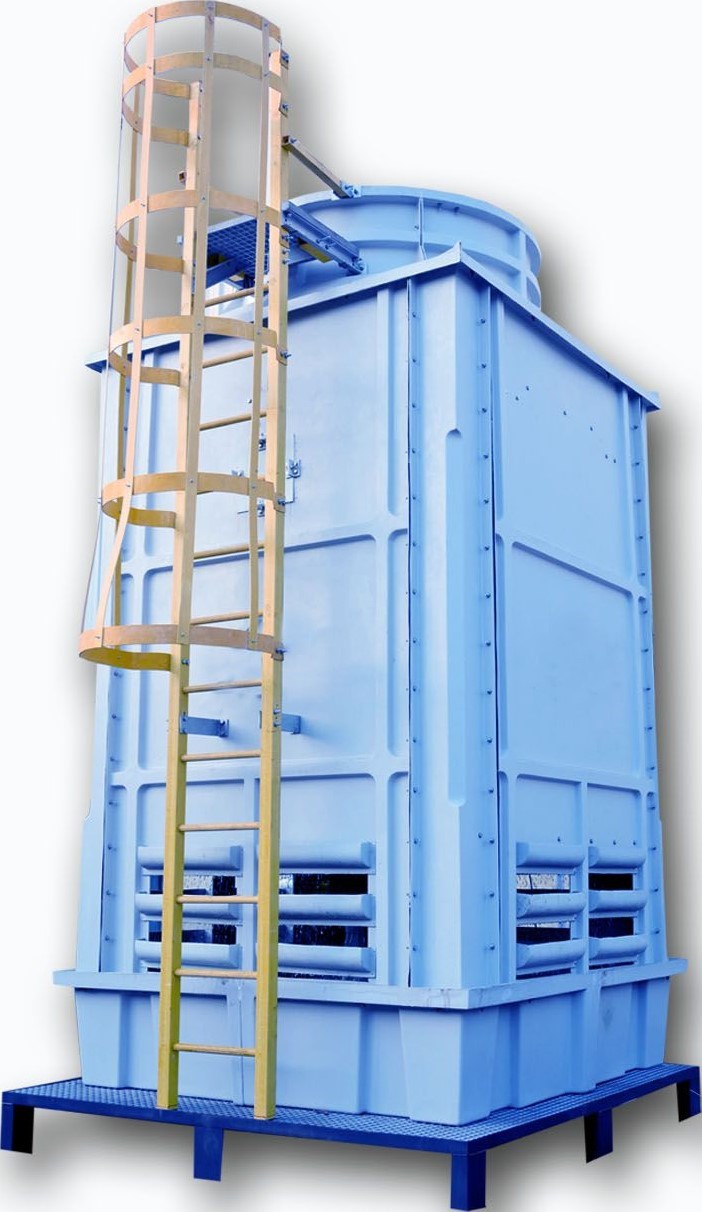

Highly Efficient Cooling Towers equipped with dynamic FRP-Bladed Fans, designed for diverse Industrial Applications.
